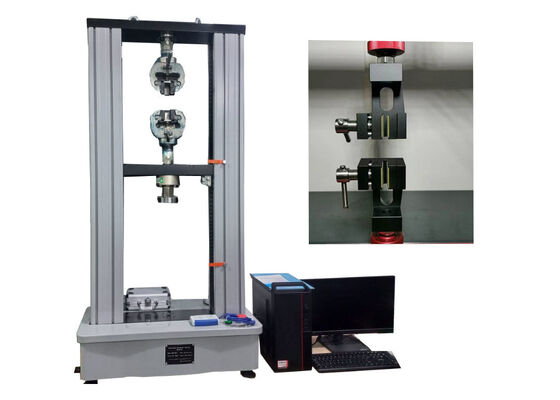

Electronic Universal Testing Machine
Ideal for testing plastic, rubber, textile, metal wire, nylon wire, belts, and packaging materials with precision and reliability.
Range of Application
Universal tensile testing systems serve as ideal inspection equipment for quality control workflows across various industrial sectors. Applicable test specimens include metal wires, nylon filaments, conveyor belts, plastic blanks, rubber materials, textile fabrics, garment products, and packaging materials. This equipment is purpose-built to execute mechanical performance assessments including tension, compression, flexure, shear, and tearing tests.
Product Features
- Dual lead screw structural design with optimized technologies for mechanical frame structure, intelligent control, precision measurement, and human-machine operation
- High testing accuracy, extensive adjustable speed range, compact layout, simple operation, and excellent long-term stability
- Fully conforms to universal industry standards for various plastic pipe materials
- Applicable to tensile, compression, bending, and creep performance tests for plastics, waterproof materials, textiles, paper products, and rubber materials
- Fitted with large-sized pressure plate accessory for specialized testing including direct flat compression test and compression resilience test
- Capable of external load resistance ring stiffness test, creep performance test, and ring tensile strength test
Technical Specifications
| Model |
XWW-100KN |
| Type |
Floor model with double test space |
| Max. Load |
100KN |
| Accuracy Grade |
0.5% |
| Force-measuring Range |
0.4%~100%FS |
| Force-measuring Accuracy |
≤0.5% |
| Deformation-measuring Range |
2%~100%FS |
| Deformation-measuring Accuracy |
0.5% |
| Crossbeam Displacement Resolution |
0.001mm |
| Crossbeam Speed Range |
0.05-350mm/min |
| Displacement Speed Accuracy |
≤ 0.5% |
| Test Width |
520 |
| Total Crossbeam Travel |
700mm |
| Sample Size |
Max.25*21mm(wide*thick) - Customizable |
| Clamps |
Tensile jig, Compression jig, Bending jig, etc |
| PC System |
Equipped with brand computer and color inkjet printer |
| Power Supply |
AC220V; 3.0kw |
| Standards |
ISO7500-1, ISO5893, ISO9969, ASTMD638/695/790 |
UTM Software Features
- Comprehensive and expandable functional capabilities with professional preset test routines
- Supports tensile, compression, bending, shear, and peeling tests for metallic and non-metallic materials
- Intuitive Windows-based operation suitable for operators of all proficiency levels
- Multi-language support (Simplified Chinese, Traditional Chinese, English) for global users
- Password-protected user accounts with graded permission management and operational traceability
- Built-in overload protection with customizable thresholds for equipment safety
- Flexible switching between force and displacement measurement units
- Multiple test curve types including load-displacement, load-time, displacement-time, stress-strain, and load-tensile length
- Dual calibration mechanism for force values with automatic parameter configuration and zero calibration
- Compatible with ISO, JIS, ASTM, DIN, and GB testing standards
- Superposition comparison of multiple test curves for data analysis
- Automatic calculation of mechanical indicators including maximum force, yield strength, tensile strength, elastic modulus, and elongation at break
System Configuration
- AC servo motor with dedicated drive module
- Full speed reduction transmission assembly
- 100KN force sensing load transducer
- Two high-precision ball screw assemblies
- Main circuit control board
- Full servo motion control system
- Transmission gear assembly
- Industrial control computer
- Color inkjet printing device
- Tensile testing fixture set, compression fixture set, bend fixture set (customizable)
- Extensometer deformation measuring assembly
- Software installation optical disc
- Complete technical documentation pack (operation handbook, software operation guide, factory calibration certificate)
- General maintenance tool kit
Frequently Asked Questions
What is an Electronic Universal Testing Machine?
An Electronic Universal Testing Machine is a precision testing instrument designed to evaluate the mechanical properties of materials, including tensile strength, compression strength, modulus of elasticity, and elongation.
What materials can be tested with an Electronic Universal Testing Machine?
An Electronic Universal Testing Machine supports testing for a diverse range of materials, encompassing metals, plastics, elastomers, and composites.
How accurate are Electronic Universal Testing Machines?
Electronic Universal Testing Machines exhibit high measurement accuracy, with a deviation of within ±0.5% relative to the actual value.
What types of tests can be performed with an Electronic Universal Testing Machine?
An Electronic Universal Testing Machine is capable of performing a range of test types, including tensile testing, compression testing, flexure testing, shear testing, and tear testing.
What are the benefits of using an Electronic Universal Testing Machine?
The Electronic Universal Testing Machine offers cost-effectiveness and high accuracy in evaluating mechanical properties. It features user-friendly operation and delivers rapid test results, enhancing efficiency in material testing workflows.
