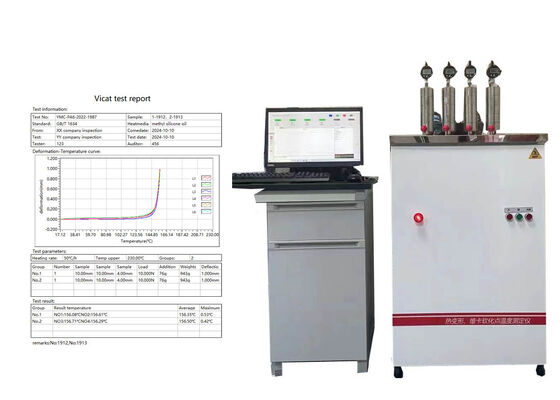

HDT VICAT Testing Machine for Plastic Thermal Performance Analysis
The HDT VICAT Testing Machine is engineered to precisely determine heat deflection temperature and Vicat softening point for comprehensive plastic quality control and material characterization.
Product Overview
This specialized testing apparatus measures heat deflection temperature and Vicat softening point of plastic materials. During testing, specimens are subjected to constant loads while fully immersed in a temperature-controlled liquid bath that heats at standardized rates. The resulting thermal resistance data provides essential technical indicators for plastic material characterization, routine quality inspection, and compliance verification.
Key Features
- Developed to support the growing plastic manufacturing industry and enhance material research capabilities
- Complies with international standards including ISO 75-1-1993, ISO 306:1994, GB/T1633-2000, and GB/T1634-2001
- Computerized intelligent control system ensures stable performance and simplified operation
- High-end professional testing device for various non-metallic materials
Compliance Standards
Fully compliant with global testing standards: ISO 2507, ISO 75, ISO 306, ASTM D 1525, and ASTM D 648 for comprehensive plastic thermal performance detection.
Technical Specifications
| Model |
XRW-300F |
| Testing Stations |
6 stations (simultaneous testing of 6 samples) |
| Cooling System |
Air cooling above 150°C, water or natural cooling below 150°C |
| Deformation Measurement |
High precision digital display dial gauge |
| Heating Rate |
50°C/h, 120°C/h |
| Max Temperature Deviation |
±0.5°C |
| Deformation Deviation |
0.01mm |
| Vicat Load |
10N ± 0.2N, 50N ± 1N |
| Fiber Stress |
0.455 MPa and 1.82 MPa |
| Temperature Control Range |
Room temperature ~ 300°C |
| Deformation Measuring Range |
0 ~ 10mm |
| Sample Frame Number |
3 |
| Test Span |
60~120mm |
| Heating Power |
6KW |
| Power Supply |
220V 50Hz |
| Display |
Color touch screen |
| Type and Control |
Desk type using PLC control system |
Application
Used to measure heat deformation and Vicat softening temperature of thermoplastic materials, plastic, and rubber in manufacturing, scientific research, and educational institutions.
Standard Configuration
- Main frame: 1 set
- Electric cabinet: 1 set
- Specimen holder: 3 sets
- Vicat indenter: 3 sets
- Heat deflection indenter: 3 sets
- Displacement sensor: 3 sets
- Power line: 2 sets
- Connecting line: 2 sets
- Operation manual: 1 set
- Certificate: 1 set
- Packing list: 1 set
Frequently Asked Questions
Which brand produces your Plastic Pipe Hydrostatic Pressure Testing Machine?
JHH is the exclusive brand of our Hydrostatic Pressure Testing Machine, with all production procedures completed at our manufacturing base located in Beijing, China.
What core testing functions can this Hydrostatic Pressure Testing Machine fulfill?
This testing apparatus is engineered to conduct inspection on plastic pipelines' long-term hydrostatic bearing capacity and instantaneous burst mechanical performance.
What pipeline varieties and raw material categories can this Hydrostatic Pressure Testing Machine accommodate for inspection?
The device supports performance detection for plastic tubing and composite pipeline products, covering mainstream material grades such as PP-R, PP-B, PP-A, PVC, PE and PE-X alongside other comparable piping materials.
How precise is the measuring system integrated into this Hydrostatic Pressure Testing Machine?
The measuring deviation of this Hydrostatic Pressure Testing Machine is controlled under 0.1% relative to the full scale range.
What peak pressure value can this Hydrostatic Pressure Testing Machine sustain during testing operations?
The upper limit of test pressure supported by the equipment stands at 10MPa, equivalent to 100 bar or 1450 psi.
