Drop Hammer Test Equipment
High-precision testing apparatus designed to provide accurate impact resistance data for manufacturing quality control environments.
Application & Overview
The JINHAIHU XJL-300A Falling Weight Test Equipment is engineered to evaluate the impact resistance of plastic pipes in compliance with ISO 3127 and equivalent international standards. This reliable testing solution is widely used in scientific research institutions, testing laboratories, and plastic pipe manufacturing facilities.
Ideal for building materials sector and research bodies, this equipment features secondary impact prevention, automatic height calibration, and real-time data display. Compatible with both passage and gradient test methods, it offers user-friendly operation, high safety standards, and stable performance.
Key Features
- Automatic control configuration for effortless operation
- Minimum drop height of 10mm for small material testing
- Secondary impact prevention mechanism
- Real-time impact height detection and display
- Compatible with passage and gradient test methods
- High operational safety and dependable performance
Compliance Standards
ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, and equivalent international standards.
Technical Parameters
| Model |
XJL-300D |
| Ambient Temperature |
10℃-35℃ |
| Drop Hammer Quality |
0.5, 0.8, 1.0, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 6.3, 8, 10, 12.5kg |
| Hammer Diameter |
D25mm, D90mm |
| Height of the Fall |
10mm-2000mm, error≤±2mm |
| Sample Diameter |
Φ16mm-Φ630mm |
| Impact Center Deviation |
≤2mm |
| V-type Supporting |
120° |
| Power Source |
220VAC±10% |
| Outline Dimension |
720mm×710mm×3950mm |
| Net Weight |
385kg |
Support and Services
We provide comprehensive technical support and after-sales services for Drop Hammer Test Equipment. Our engineering team offers specialized guidance covering installation, maintenance, troubleshooting, calibration, and customized technical solutions tailored to your operational requirements.
Our professional staff maintains 24/7 availability to address consultations and technical concerns promptly, ensuring premium service experiences for all clients.
Packing and Shipping
All equipment is encased in reinforced wooden cases for safe transit. Each package includes the main device, operational guidelines, spare components, and accessories. Cases are clearly marked with equipment details and identification numbers.
Complete documentation including commercial invoices and packing manifests is provided. Freight charges are calculated based on destination and transportation mode.
Frequently Asked Questions
What is Drop Hammer Test Equipment?
Specialized testing apparatus manufactured by JHH in Beijing, China, designed to measure impact resistance performance of target objects.
What is the core objective of this equipment?
To assess impact resistance of objects, ensuring tested products meet performance qualifications.
Which products is this equipment designed for?
Wide range of pipes including PVC-U water supply, sewage, low-pressure transmission, core-layer foam, double-wall corrugated, and PE water supply pipes. Also applicable for rigid plastic plate testing.
What is the testing precision?
Testing precision up to 0.5%, ensuring authentic and reliable test data.
What is the maximum testing energy?
Maximum testing energy of 300J, sufficient for impact resistance testing of various products.

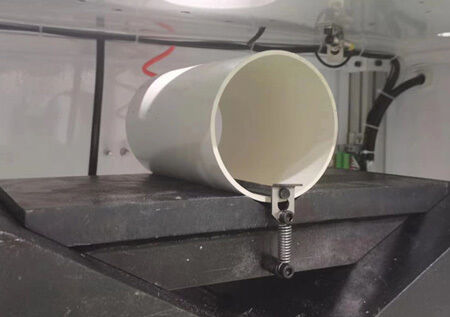

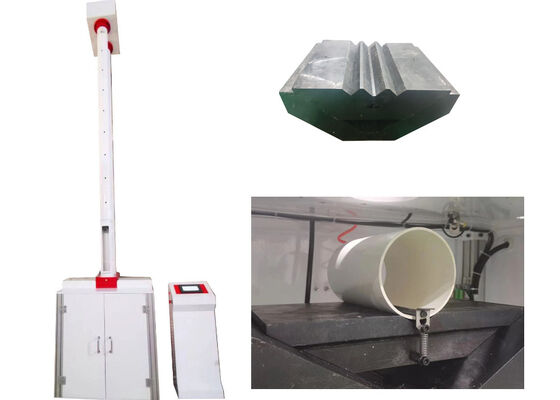

Product Images
